Suhr Shiba Drive Overdrive Pedal

Art.nr: 03-SHI-0001

3.795,-

Antall:

Suhr

Ikkje på lager, ca. 4-7 dagers leveringstid, så lenge varen er på lager hos leverandør.

SUHR SHIBA DRIVE PEDAL

Shiba Drive™ is a smooth sounding overdrive pedal that provides players with a wide variety of fat rhythm and warm lead tones. Shiba Drive is very popular among players seeking an overdrive pedal that can be used in conjunction with both their amplifier’s clean and overdrive channels.

CONTROLS

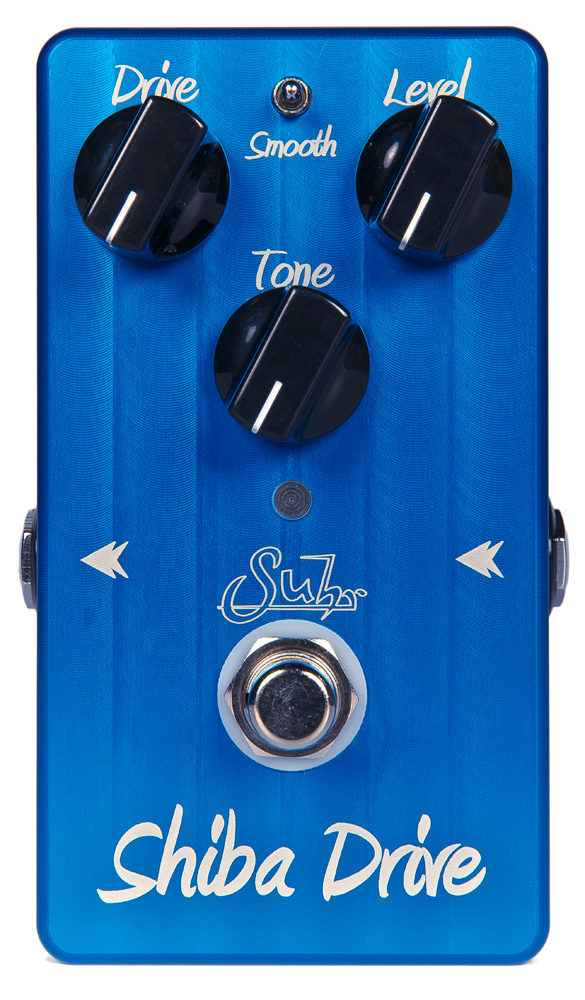

Shiba Drive™ features an easy to tweak layout which includes Drive, Level, Tone, and a Smooth switch.

Drive: Controls the amount of Drive from the circuit. This will take you from a bluesy crunch to a sustained, compressed overdrive.

Level: Controls the output level of the pedal. Shiba provides enough level to push the front end of any tube amp into natural clipping, or adds sustain to an already overdriven amp.

Tone: Shapes the the overall tonal response of the pedal – from warm and smooth to bright and cutting.

SMOOTH SWITCH

Left: Activates as a mild high-end roll off. Effective for warming up guitars with single-coil pickups.

Middle: Voiced to produce a natural, open sounding overdrive.

Right: A more pronounced high-end roll off. Excellent for chunky rhythms and violin-like lead tones.

Note: The modes have less effect at lower gain and tone settings.

ADDITIONAL FEATURES

True Bypass: Shiba is true bypass via a relay. This function allows for the remote switching, and the battery monitor feature. The relay produces less popping when switching the pedal on and off.

FX Link: The FX Link connector allows the pedal’s switching function to be controlled from an external switch, pedal board, loop switcher, or any other custom interface. FX Link also provides the ability to power up in the On/Off state.

Low Battery Monitor: A unique battery monitor alerts the user to low battery conditions. In addition, the battery monitor will automatically switch the pedal to True Bypass if the battery voltage is too low for the circuitry to correctly operate.

OUTPUT IMPEDANCE:	600 ohm
POWER CONNECTOR:	9Vdc, center negative, 2.1mm x 5.5mm
OPERATING VOLTAGE:	4V to 18V (nominal 9V)
MAXIMUM VOLTAGE:	20Vdc
REVERSE BATTERY PROTECTION:	Yes
OVER VOLTAGE PROTECTION:	Yes
CURRENT CONSUMPTION:	8mA
ESTIMATED BATTERY LIFE:	75 – 100 hours of continuous use
DIMENSIONS:	2.5”(W) x 4.5”(D) x 1.25”(H)
WEIGHT:	0.75lb
FX LINK CONNECTOR:	1/8" Mono
FX LINK MAX VOLTAGE:	3.3Vdc
SHIELD → TIP:	Activate Pedal
ROHS COMPLIANT:	Yes
