SSL 500-Series SiX Channel

Art.nr: SSL-729736X1

4.129,-

Antall:

SSL

Ikkje på lager, ca. 4-7 dagers leveringstid, så lenge varen er på lager hos leverandør.

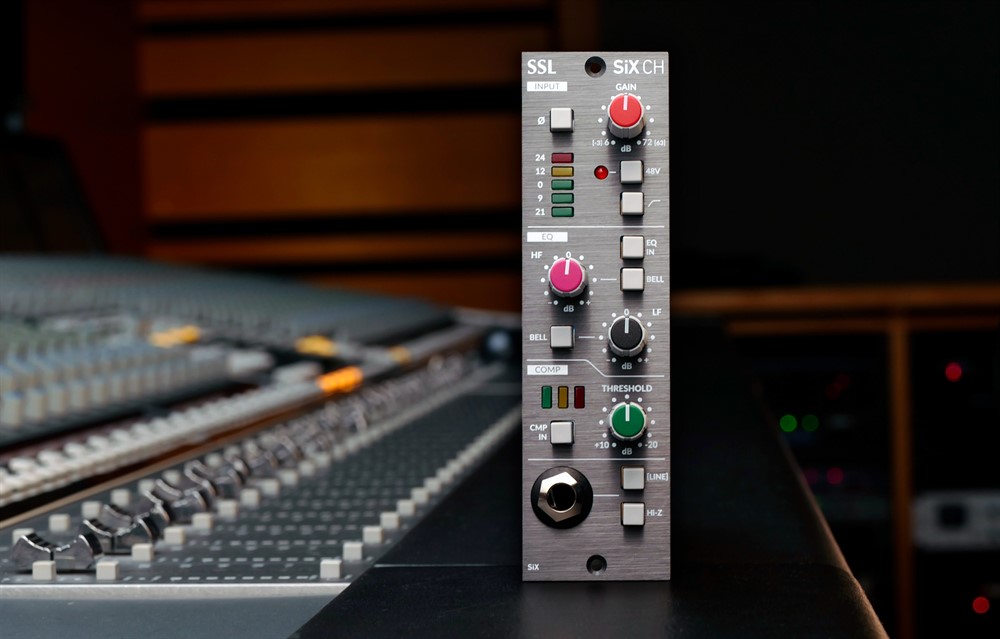

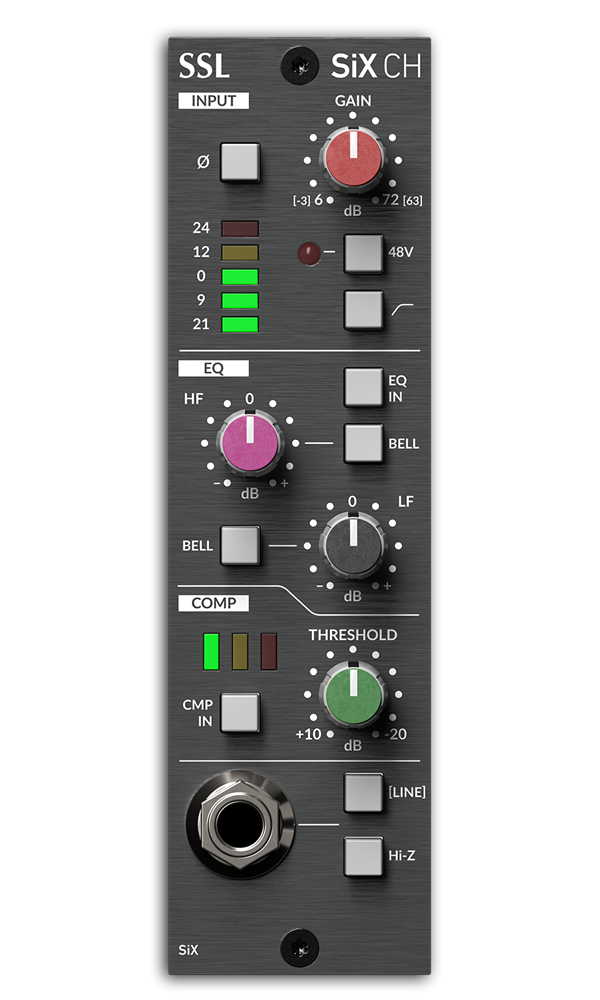

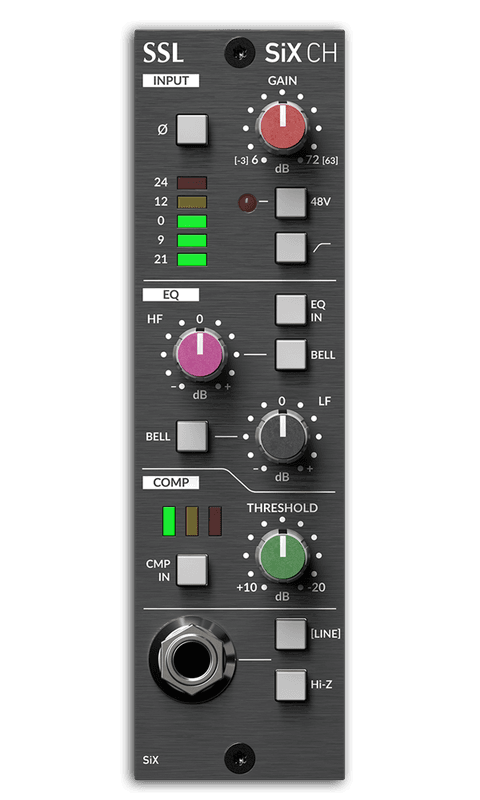

SSL SiX CH ( SiX Channel strip)

The SSL SiX Channel is a single-width 500 Series mini channel strip using the SuperAnalogue channel processing features from SSL’s SiX console including the Mic-pre, low and high frequency EQ, as well as the single knob compressor. The SiX Channel is a simple way to add additional Mic/Line inputs to the line level inputs of any professional audio device, including the Stereo channels of the SiX console. It is also a flexible way to create a professional modular mixer from a ‘summing’ 500 Series rack unit.

SuperAnalogue Pre-Amp input:

A wide gain range, ultra low noise SuperAnalogue design provides both Line and Mic facilities with a “Line” gain range switch to cover a wide range of source levels. The nominal Line Input impedance is 10 kΩ. This can be changed to 1 MΩ using the Hi-Z switch. The 1MΩ impedance makes this input suitable for very high impedance sources such as passive guitar pickups without the need for an external DI box.

Other Features;

· Switched 12 dB/oct, 75 Hz High Pass Filter (HPF)

· Polarity Switch (ø) inverts the polarity of the rear XLR Mic Amp rack input.

· A five segment LED meter shows the output signal level in dBu

EQ:

The EQ is a gentle, broad stroke two-band design with high and low shelving filters at 3.5 kHz and 60 Hz, adjustable from +15 dB to -15 dB of gain. Each band can be independently switched between shelving and bell curves. The bell curves change centre frequency to operate at 5 kHz and 200 Hz giving greater versatility from the two controls.

COMP:

A versatile ‘one knob’ channel compressor with features that give powerful and versatile performance from its deceptively simple controls. A three LED meter indicating the amount of gain reduction being applied. The circuit has automatic make-up gain to maintain signal level for the full range of threshold settings.

Key Features:

SuperAnalogue Mic Pre with 48V, Polarity and HPF

Front Panel TRS Line Input with 1MΩ Hi-Z switch.

Switched 2 band EQ with indepandantly

Switched single knob compressor with variable threshold.

5 frequency selectable High-Pass Filter and Dedicated Output Trim.

Tech Specs:

Module signal: Mono

Pre-Amp Gain: Variable from +6 to +72 dB (Mic), -3 to +63dB (Line)

Mic Pre EIN: Typically 129dB

THD+N: <0.0015%

CMRR: >80dB (Mic), >70dB (Line)
