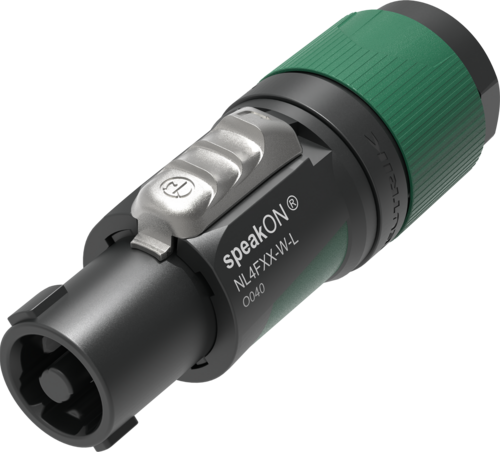

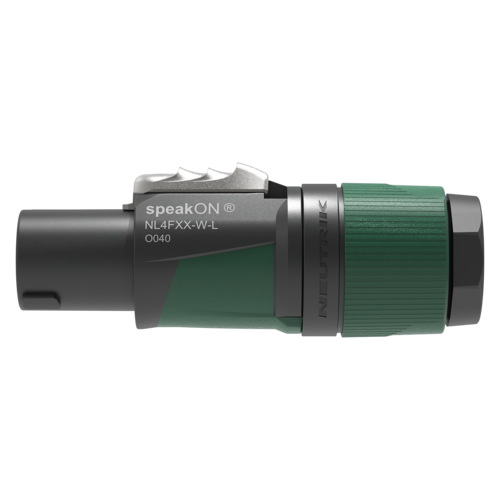

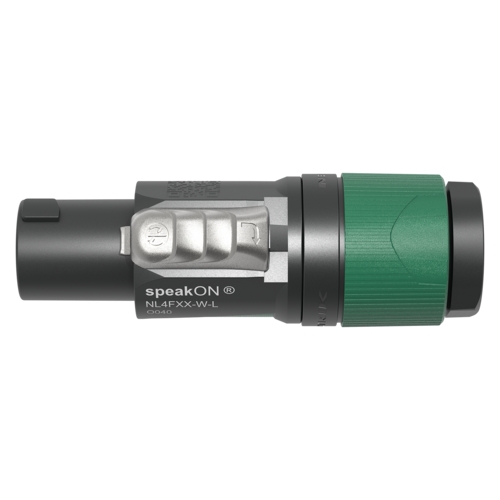

Neutrik NL4FXX-W-L Speakon plugg 4P Skru 10-16mm Hun

Art.nr: NL4FXX-W-L
85,-
Antall:
Ikkje på lager, ca. 4-7 dagers leveringstid, så lenge varen er på lager hos leverandør.

4-polet speakON-kabelkontakt, skrueterminal, strekkavlastning av chucktype for kabeldiametere 10 til 16 mm

speakON-kontakter er industristandarden for høyttalertilkoblinger. Denne produktserien tilbyr ekstremt pålitelige og robuste kabelkoblinger med et velprøvd vrilåssystem. speakON-kabelkontaktene har solide kontakter med skrueterminaler inkludert en trådet ledningsbeskyttelse.

  • Opptil 37 A rms strømstyrke
  • Unik Neutrik låsebøssing og strekkavlastning for kabeldiametere 10 mm til 16 mm
  • IEC 61984, UL 1977 og CSA C22.2 No.182.3 sertifisert
  • Overlegen NEUTRIK kvalitetsstandard, ekstremt robust og pålitelig
  • Enkel å montere avlastning med låser innsatsen mekanisk og justeres med huset
  • Enkelt og pålitelig vrilåssystem
  • Ergonomisk design med sklisikkert to-komponent støpt hus
  • Forbedret knekkbeskyttelse av to-komponent bøssing
Title NL4FXX-W-L
Connector series speakON 4 pole
Electrical
Contact resistance ≤ 2 mΩ
Dielectric strength 2.8 kVac
Insulation resistance > 10 GΩ (initially)
Number of electrical contacts 4
Rating Europe IEC 61984: 37 A 250 V AC
Rating USA UL1977: 35 A 250 V AC
Rating Canada CSA C22.2 No.182.3: 24 A 250 V AC
Attention This product is strictly not intended for use as an AC or DC power supply connector!
CAUTION: NOT FOR INTERRUPTING CURRENT

Mechanical


Cable O.D. 10 - 16 mm
Lifetime typically 5’000 mating cycles
Wiresize (mm²) 1.5 – 4 mm²
Wiresize (AWG) 17 – 11 AWG
Locking device Twist lock
Termination screw type terminals

Material


Contact plating Ag
Contacts Copper Alloy
Insert Polyamide (PA6.6)
Locking element Zinc diecast
Shell Polyamide (PA6) / TPE
Strain relief Polyketone
Bushing Polypropylene / TPE

Environmental


Temperature range -33 °C to +80 °C
Protection class IP20
Flammability acc. to UL94 V-0
