Neutrik NL2FXX-W-S Speakon plugg 2P 6-12mm Hun

Art.nr: NL2FXX-W-S

70,-

Antall:

Neutrik

Normalt 3-5 dagers leveringstid, så lenge varen er på lager hos leverandør.

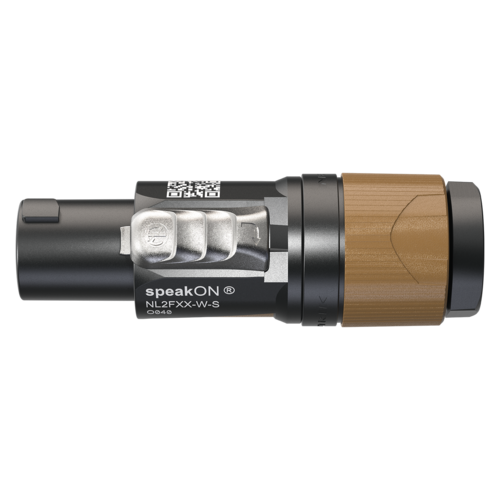

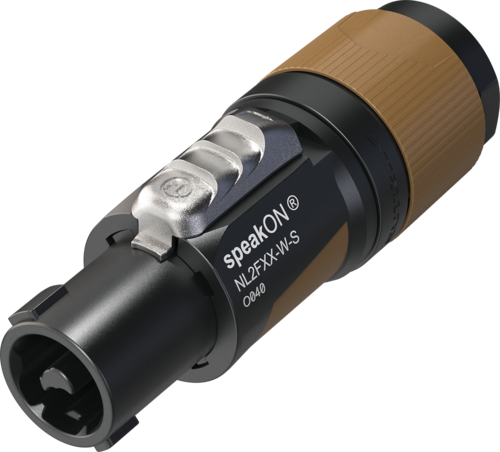

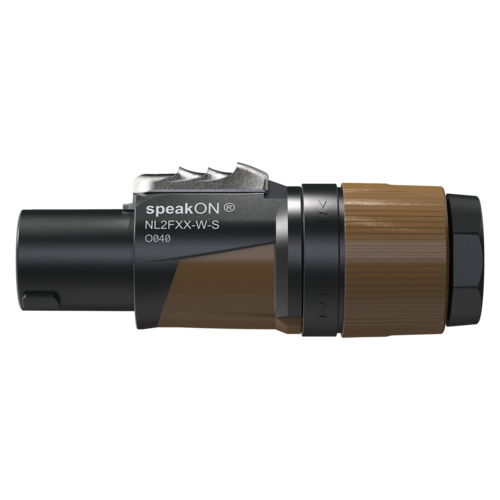

Neutrik NL2FXX-W-S Speakon plugg 2P 6-12mm Hun

2-pols speakON-kontakt for kabel, skrueterminal, strekkavlastning av chucktype for kabeldiametere 6 til 12 mm

speakON-kontakter er industristandarden for høyttalertilkoblinger. Denne produktserien tilbyr ekstremt pålitelige og robuste kabelkoblinger med et velprøvd vrilåssystem. speakON-kabelkontaktene har solide kontakter med skrueterminaler inkludert en trådet ledningsbeskyttelse

Funksjoner og fordeler

Passer med 2-polet chassiskontakt samt 4-polet chassiskontakt (kontakter +1/-1)
Ergonomisk design med sklisikkert to-komponent støpt hus
Opp til 37 A rms strømstyrke
Unik Neutrik låsebøssing og strekkavlastning for kabeldiameter 6 mm til 12 mm
IEC 61984 sertifisert, dermed akseptert som en komponent av utstyr iht. i henhold til IEC 62368-1
Overlegen NEUTRIK kvalitetsstandard, ekstremt robust og pålitelig
Enkelt og pålitelig vrilåssystem
Lett å montere fordi strekkavlastningen låses med innsatsen mekanisk og justeres med huset.
Forbedret knekkbeskyttelse med to-komponent foring


Electrical
Title	NL2FXX-W-S
Connector series	speakON 2-pole
Contact resistance	≤ 2 mΩ
Dielectric strength	2.8 kVac
Insulation resistance	> 10 GΩ (initially)
Number of electronical contacts	2
Rating Europe	IEC 61984: 37 A 250 V AC
Rating USA	UL1977: 35 A 250 V AC
Rating Canada	CSA C22.2 No.182.3: 24 A 250 V AC
Attention	This product is strictly not intended for use as an AC mains or power supply connector! CAUTION: NOT FOR INTERRUPTING CURRENT

Mechanical
Cable O.D.	6 – 12 mm
Lifetime	typically 5’000 mating cycles
Wiresize (mm)	1.5 – 4 mm²
Wiresize (AWG)	17 – 11 AWG
Locking device	Twist lock
Termination	screw type terminals

Material
Contact plating	Ag
Contacts	Copper Alloy
Insert	Polyamide (PA6.6)
Locking element	Zinc diecast
Shell	Polyamide (PA6) / TPE
Strain relief	Polyketone
Bushing	Polypropylene / TPE

Environmental
Temperature range	-33 °C to +80 °C
Protection class	IP20
Flammability acc. to UL94	V-0
