Neumann TLM 107 BK Stormembran Mikrofon m/5 Karakteristikker

Art.nr: 008667

18.190,-

Antall:

Neumann

Ikkje på lager, ca. 4-7 dagers leveringstid, så lenge varen er på lager hos leverandør.

TLM 107 bk

Our new state of the art microphone: extremely versatile and surprisingly affordable!

Highly defined sound in 5 directional patterns
Variable pad and low cut settings
All-new capsule design
Outstanding transient response

The Modern Studio Workhorse

The TLM 107 is a reference class microphone for vocals and instruments with breathtaking realism. Five polar patterns plus variable pad and low cut settings make the TLM 107 exceptionally flexible. And with a dynamic range of 131 dB the TLM 107 captures anything from a slight whisper to massive drums without unwanted noise or distortion.

21st Century Microphone

The TLM 107 offers true high definition sound quality at an affordable price. Neumann developed this microphone for project and home studio users who prefer to capture an uncolored sound image, true to the original source, in order to retain all options for post processing and mixing. The TLM 107, in turn, offers all the flexibility required to make a high quality recording of any source in any situation.

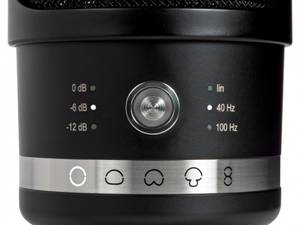

Neumann decided to give the TLM 107 a modern look, although the large tapered headgrille does echo the iconic design of such Neumann classics as the M 49 tube microphone. The stylish navigation toggle on the back of the microphone is a joy to use as it controls all settings in one place: pad (0/–6 /–12 dB), low cut (lin/40 Hz/100 Hz) and polar patterns (omni/wide cardioid/-cardioid/¬hyper¬cardioid/¬figure-8).

The newly developed dual diaphragm condenser capsule is specially designed for the TLM 107 to offer outstanding transient response and an extended, carefully balanced frequency response for all polar patterns. This means, you can adjust the directional pattern according to the recording situation without affecting the overall sound balance. Which is quite extraordinary for a large diaphragm microphone! And, needless to say, the TLM 107 offers true Neumann quality in any setting.

Neumann Engineering

As a member of our TLM series, the TLM 107 operates with a transformerless circuit ensuring an open, transparent sound and a full, unrestricted bass transmission, even at highest levels. Two low cut settings are available to reduce rumble and compensate for the proximity effect in close miking situations. Even without engaging the two pad settings, the TLM 107 can handle enormous sound pressure levels of up to 141 dB without clipping (up to 153 dB with preattenuation). The TLM 107 has a self-noise of only 10 dB-A, which is much lower than the ambient noise in a very quiet recording studio. In other words, the TLM 107 will add neither noise nor unwanted distortion to your recordings.

The TLM 107 is primarily designed for small studios but due to its no-compromise sound quality can also be used for high-end professional applications including broadcast and classical recordings. Not only is the TLM 107 an extremely versatile workhorse microphone for a wide range of instruments, such as acoustic and electric guitar, piano, upright bass, drums and percussion; it is also an outstanding vocal microphone.

State of the art, yet affordable large diaphragm microphone
Versatile studio workhorse for vocals and instruments
Extremely flexible: 5 polar patterns, multiple pad and low cut options
Transformerless circuitry for ultra-transparent sound
Extremely low self-noise
Distortion-free even at highest sound pressure levels

Diagrams

Omni TLM 107

Wide Cardioid TLM 107

Cardioid TLM 107

Hypercardioid TLM 107

Figure 8 TLM 107

Acoustical operating principle	Pressure gradient transducer
Directional Pattern	Omni, wide angle cardioid, cardioid, hypercardioid, figure-8
Frequency Range	20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm	11 mV/Pa
Rated Impedance	50 ohms
Rated load impedance	1000 ohms
Equivalent noise level, CCIR ¹	22 dB
Equivalent noise level, A-weighted ²	10 dB-A
Maximum SPL for THD 0.5% ³	141 dB
Maximum SPL for THD < 0.5% with pre-attenuation -6 dB ⁴	147 dB
Maximum SPL for THD < 0.5% with pre-attenuation -12 dB ⁵	153 dB
Signal-to-noise ratio, CCIR (re. 94 dB SPL) ⁶	72 dB
Signal-to-noise ratio, A-weighted (re. 94 dB SPL) ⁷	84 dB
Maximum output voltage	10 dBu
Supply voltage (P48, IEC 61938)	48 V ± 4 V
Current consumption (P48, IEC 61938)	3.2 mA
Matching connector	XLR 3 F
Weight	445 g
Diameter	64 mm
Length	145 mm

1) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS

2) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS

3) measured as equivalent el. input signal

4) measured as equivalent el. input signal

5) measured as equivalent el. input signal

6) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS

7) according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS

https://en-de.neumann.com/tlm-107#description
