← Midi Solutions R8 MIDI-controlled Relay Array

Midi Solutions Relay

Art.nr: 50049

2.230,-

Antall:

Midi Solutions

Ikkje på lager, ca. 4-7 dagers leveringstid, så lenge varen er på lager hos leverandør.

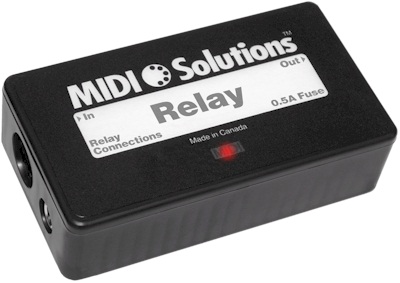

MIDI Solutions Relay

The MIDI Solutions Relay contains a relay that can be programmed to open or close in response to MIDI events (for eight relays in a single rack space unit, see the MIDI Solutions R8).

Event types are programmable and include:

A fast reed relay is used for a response time of less than 2 ms. Relay contacts are rated at 500 mA. Contacts are made available via connection at the tip and sleeve of a 1/4" mono phone jack. When switching inductive loads be aware of precautions that must be taken to avoid back EMF problems.

The Relay is programmed by sending it MIDI System Exclusive messages (read the Programming FAQs for more details). This is easily done with the MIDI Solutions Programming Tools software. Once programmed, its settings are retained even after power is removed. The Relay can be reprogrammed with new settings as often as needed.

The Relay is MIDI-powered, and requires no batteries or power supply to operate with most MIDI products (for more information read the Power FAQs). A MIDI indicator LED lights up when the product is powered and flashes when MIDI data passes through it.

Weight: 126 g (4.4 oz.)
Dimensions: 112 x 62 x 31 mm (4.4" x 2.4" x 1.2")
MIDI Solutions Relay Block Diagram:


http://midisolutions.com/prodrel.htm

Kommentarer

Share |

Midi Solutions

MIDI Solutions Inc. is a leading manufacturer of MIDI processing products. Our company is dedicated to creating innovative and affordable MIDI products for a wide range of MIDI applications. MIDI Solutions has experienced steady growth since it was founded in 1992. We have provided solutions to countless musicians, engineers, and industry professionals throughout the world.

MIDI Solutions manufactures a line of compact MIDI processing products, and also a line of rackmount products that contain multiple versions of these compact products. MIDI Solutions products are highly flexible, yet extremely affordable. How is this accomplished? We keep costs down by eliminating unnecessary switches and displays, and squeezing the processing power into compact units, resulting in solid, reliable products that contain exactly the functions you need. Besides this, all MIDI Solutions products are MIDI-powered (yes, even our rackmount products!) so no batteries or wall adapters are needed. Just plug a MIDI cable into the input of the product and it's ready to process MIDI data!

At MIDI Solutions we take pride in producing products that contain not only the features you need, but are solid and reliable out in the field. Our products are manufactured to strict standards, and each product is rigorously tested before it is shipped. If you should find a problem with a product, or need some technical advice, you'll find us not only to be knowledgeable and helpful but also prompt in responding. And if you think a slight modification to one of our products is necessary in order accomplish a MIDI processing task that you require, we're not unapproachable. In fact we consider our Custom Products to be an important part of our work.

We look forward to continuing our development of innovative MIDI solutions in the future, producing the products necessary for our customers to meet a wide range of MIDI processing requirements.
