Midi Solutions Pedal Controller

Art.nr: 50052

2.230,-

Antall:

Midi Solutions

Ikkje på lager, ca. 4-7 dagers leveringstid, så lenge varen er på lager hos leverandør.

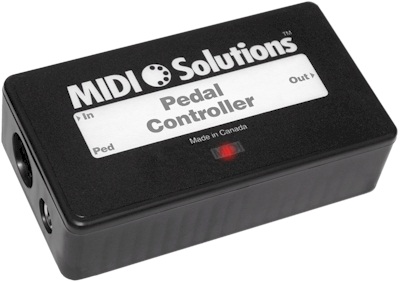

MIDI Solutions Pedal Controller

The Pedal Controller accepts an expression pedal (such as the Yamaha FC7 or Roland EV-5 or any potentiometer connected to a 1/4" stereo phone plug) as an input and generates continuous MIDI data based on its position. The Pedal Controller may be inserted inline at any point in the MIDI data stream, allowing continuous MIDI data to be sent to any device in a MIDI setup.

The Pedal Controller's factory default settings are for it to send CC#7 (volume) on MIDI channel 1, so if this is the message that needs to be sent then no programming is necessary - just insert the Pedal Controller in a MIDI setup and it's ready to use. The Pedal Controller can also be programmed to send other types of MIDI messages, for more info read on...

The Pedal Controller can be programmed to send:

The Pedal Controller includes a MIDI Echo parameter that is selectable on/off.

The Pedal Controller accurately tracks the position of the pedal or potentiometer connected to it. Small fluctuations are eliminated when the pedal is in a stationary position and no extraneous messages are sent out. When the pedal is moved slightly, the Pedal Controller will send an update even if its position has only changed by a single value. Many control wheels or knobs only update themselves every two or every four values, resulting in coarser control, and sometimes zipper noise.

Another unique feature of the Pedal Controller is its ability to add a variable amount of curvature to the response of the pedal. This allows you to correct for pedals with nonlinear responses, or to add greater response at one end of the pedal compared to the other.

The Pedal Controller is programmed by sending it MIDI System Exclusive messages (read the Programming FAQs for more details). This is easily done with the MIDI Solutions Programming Tools software. Once programmed, its settings are retained even after power is removed. The Pedal Controller can be reprogrammed with new settings as often as needed. The Pedal Controller's factory default settings are for it to send CC #7 (volume) on MIDI channel 1, with the Echo parameter set to ON.

The Pedal Controller is MIDI-powered, and requires no batteries or power supply to operate with most MIDI products (for more information read the Power FAQs). A MIDI indicator LED lights up when the product is powered and flashes when MIDI data passes through it.

Weight: 124 g (4.4 oz.)
Dimensions: 112 x 62 x 31 mm (4.4" x 2.4" x 1.2")
MIDI Solutions Pedal Controller Block Diagram:


http://midisolutions.com/prodped.htm
