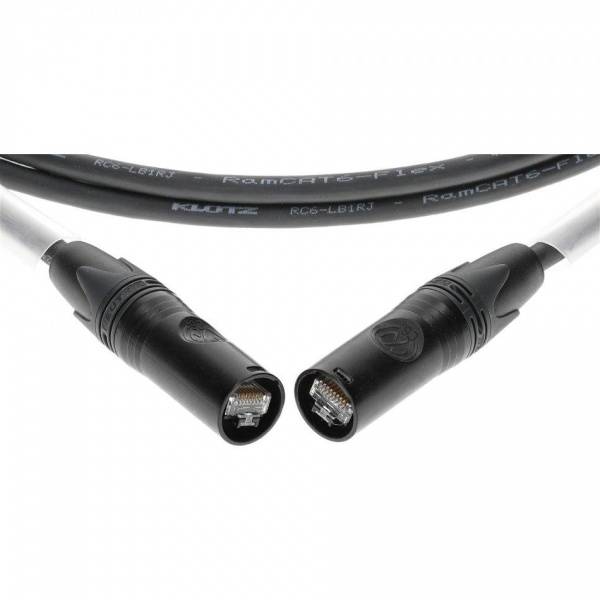

Klotz RamCAT 6 SF/UTP EtherCON Kabel på Trommel 50m

Art.nr: RC6EEW0500

9.935,-

Antall:

Klotz

Normalt 3-5 dagers leveringstid, så lenge varen er på lager hos leverandør.

Klotz RC6EEW flexible RamCAT6 network cable drum system for use on the road with etherCON Cat.6a

ruggedized Cat. 6 Outdoor, SF/UTP, AWG26/19 stranded
suitable for dragchains (tested in endurance test)
compression resistant construction due to a PE cross
10 GB Ethernet acc. to IEEE 802.3an
extra-rugged PUR jacket
ruggedized connector with Cat.6a component compliance
intermateable with the existing etherCON Cat.5 range

attention! does not intermate with the Cat.6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B

The RC6EE is a flexible3 RamCAT6 cable designed for data transfer in mobile operation.
Developed for a frequency of 500 MHz, it is suitable for data transfer rates of up to 10 Gbit/s.
The RAMCAT6 is the cable of choice for data transfer in the Ethernet applications 1000BaseT and
10GBase-T where drag chains and cable drums are used.
The RC6EE offers characteristic impedance of 100 Ω and has four twisted pairs with copper cores (19 x 0.10 mm).
The matched lay lengths of the individual pairs and the sophisticated cable stranding with central PE
cross are designed to maximize NEXT (near-end crosstalk) and FEXT (far-end crosstalk) values.
With cross-shaped PE central filler and abrasion-proof PUR jacket, the cable is ideal for mobile use on the road.
Dual shielding reliably protects against electromagnetic interference. The RC6EE is made up with
Neutrik etherCON connectors. These RJ45 connectors with rugged metal housing are CAT6a-compliant and
downward-compatible with previous standards. The technically advanced CAT6 standard presents a
particular challenge for cable designers. It’s a challenge we were happy to tackle!
